"My view is that, today, we are just considering this project for preliminary approval and that, as a result, it's not necessary for us to take up this broader issue of the applicability of the Height of Buildings Act to federal construction until our next meeting—at the earliest," Commission Chairman William Scharf said.

Submitted by the U.S. Department of the Interior, the proposal calls for a 250-ft-tall reinforced-concrete arch, clad in granite, at Memorial Circle between Arlington National Cemetery and the Lincoln Memorial.

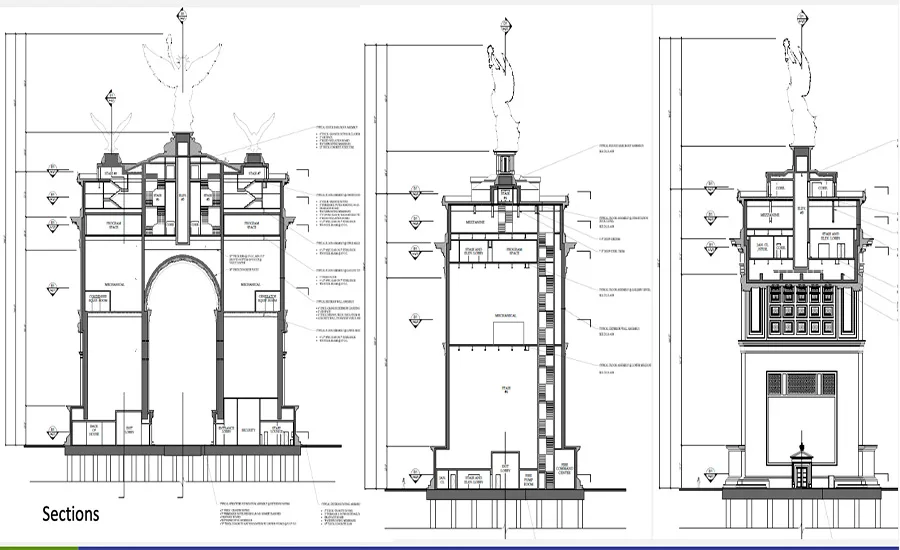

Design documents describe a structure 166 ft wide with a 55-ft central opening, topped by a winged figure flanked by two eagles.

Unlike a traditional commemorative monument, the proposed arch would function as an occupied public building. Plans include five elevators, six stairways, an observation deck, exhibit space, visitor amenities, security screening facilities and supporting mechanical areas intended to accommodate a controlled, timed-entry visitor experience.

The proposal has evolved into a major civil construction project combining vertical construction, transportation improvements and new utility infrastructure. The expanded design package shows the project would require significant civil and transportation work in addition to the monument itself.

A rendering illustrates the proposed 250-ft Monumental Arch at Memorial Circle, spanning Arlington Memorial Bridge, as viewed from the Lincoln Memorial, looking west. Preliminary approval documents envision the reinforced-concrete, granite-clad structure as an occupied public facility with an observation deck, exhibits and visitor amenities.

Image: National Capital Planning Commission

Memorial Circle would be reconfigured with new traffic signals, pedestrian crossings, refuge islands and roadway changes intended to improve visitor access. During construction, portions of westbound traffic from Arlington Memorial Bridge would be reduced, certain turning movements restricted and pedestrian routes temporarily detoured before permanent circulation improvements are completed.

The project would also require new potable water, sanitary sewer, electric, natural gas and telecommunications services, as Memorial Circle currently lacks the systems needed to support an occupied public facility.

Planning documents outline multiple utility routing alternatives connecting the site to existing infrastructure in Virginia and, potentially, across the Arlington Memorial Bridge.

Project documents estimate construction would take approximately two to three years and involve about 1,400 truckloads of excavated soil removed from the site and roughly 400 truckloads of engineered fill imported. Major work would include deep foundations, structural concrete, utility installation, tower cranes, site restoration and phased traffic control.

The Federal Aviation Administration concluded that the proposal would have no significant adverse effect on airspace or flight procedures at nearby Ronald Reagan Washington National Airport, despite its imposing height; obstruction lighting would be required as part of a final design.

The National Park Service issued a Finding of No Significant Impact in June but has not released its final decision document because consultation under Section 106 of the National Historic Preservation Act remains ongoing.

The project's historic preservation analysis acknowledges the proposal could adversely affect the setting and ceremonial relationship among Memorial Circle, Arlington Memorial Bridge, Arlington House and other historic resources within the area of potential effects.

The commission is expected to revisit the project as early as September after additional review of the Height of Buildings Act issue and completion of further historic preservation consultation.
