Product Snapshot: Safety Screen and Cordless Breaker
The Ascent 200 high-rise safety screen has a double-height cantilever design and multiple cladding options, including corrugated, perforated, profiled steel sheeting.
The cordless TE 500-A36 breaker is powered by a 36V, 9.0Ah lithium-ion battery.
The CX350D LR excavator has an additional counterweight and an elongated boom and arm for a maximum dig radius of 61 ft, 3 in. and dig depth of 46 ft, 3 in.
The BF 200 paver clocks in at an operating weight of 13,228 lb, with transport width of 51 in. and track width of 44 in.
High-Rise Safety Screen: Multiple Options
The Ascent 200 high-rise safety screen has a double-height cantilever design and multiple cladding options, including corrugated, perforated, profiled steel sheeting; a fixed and sliding mesh panel that can be adjusted on site; and plastic sheeting. The materials can also be used in combination. It offers fully sealed enclosures on facades with an angle of up to 10°. RMD Kwikform; www.rmdkwikform.com

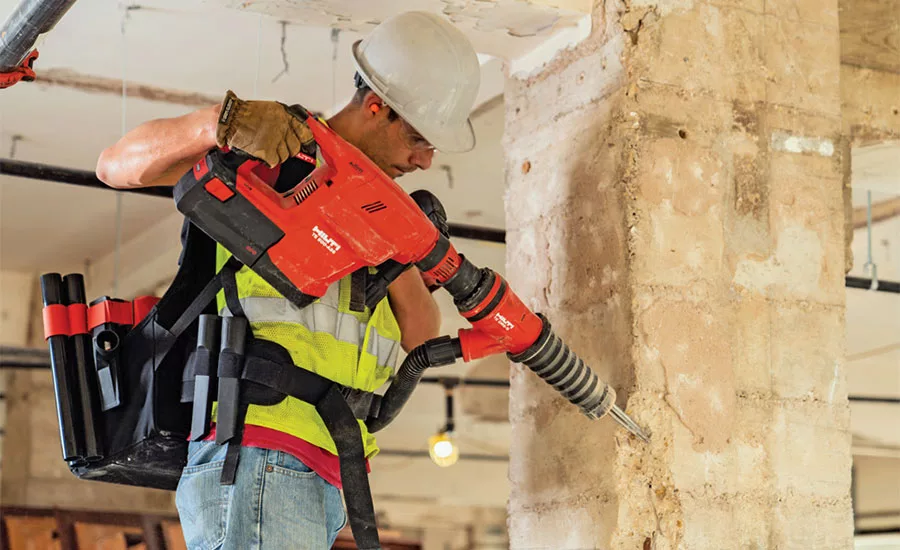

Concrete Breaker: Fully Cordless
The cordless TE 500-A36 breaker is powered by a 36V, 9.0Ah lithium-ion battery. It can deliver 5.8 ft-lb of single-impact energy and boasts a full hammering frequency of 3,300 impacts per minute. Active Vibration Reduction lessens triaxial vibration by 30% compared to similar breakers, according to the manufacturer. It can be paired with the VC 75-A22 cordless backpack vacuum system to reduce dust and meet OSHA regulations. Hilti; www.hilti.com

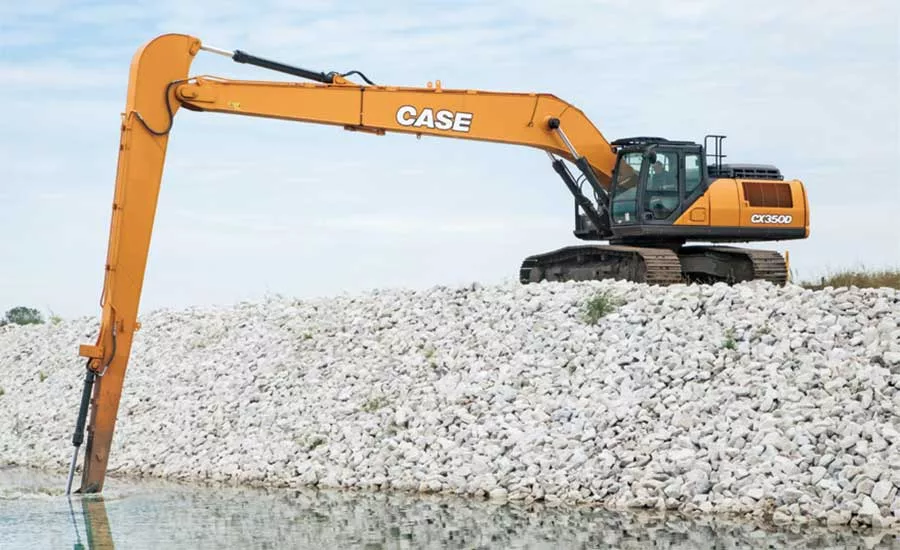

Long-Reach Excavator: Extended Boom
The CX350D LR excavator has an additional counterweight and an elongated boom and arm for a maximum dig radius of 61 ft, 3 in. and dig depth of 46 ft, 3 in. With a maximum 24,500-ft-lb of bucket digging force, the excavator has an operating weight of 88,200 lb. It is powered by a 268-hp Tier 4 Final diesel engine with selective catalytic reduction and has no need for a diesel particulate filter. Standard cab features include Bluetooth radio, heated air-ride seat, and rear and side-view cameras. CASE Construction Equipment; www.casece.com
Small Paver: Flexibility and Control
Looking for quick answers on construction and engineering topics?
Try Ask ENR, our new smart AI search tool.
Ask ENR →
The BF 200 paver clocks in at an operating weight of 13,228 lb, with transport width of 51 in. and track width of 44 in. It runs on a 74-hp diesel engine. Base paving widths on the electric screed range from 3.6 ft to 6.6 ft. A manual screed extension expands that to 11.2 ft, while reduction skids can narrow paving widths to 1.3 ft. The manufacturer’s MAGMALIFE technology allow screeds to be heated to paving temperature in only 20 minutes. The paver can be run by a single operator, with an automatic steering radius system that can maintain the cart’s path during turns. BOMAG; www.bomag.com
