Photo courtesy of Hill International-EHAF Joint Venture

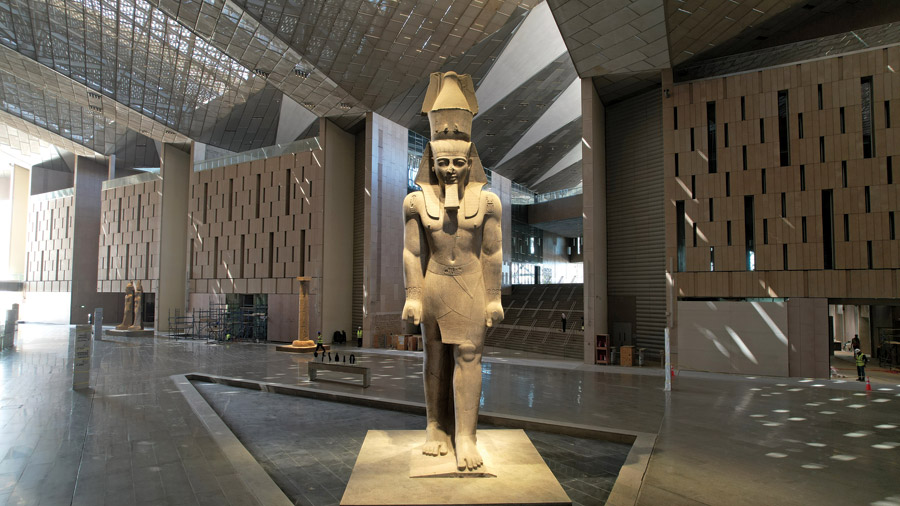

Part of the difficulty came from its ambitious design. Costing $1 billion, the museum has 12 separate exhibition halls and an atrium that holds a 36-ft-tall, 3,200-year-old statue of pharaoh Ramses II, ancient Egypt’s second longest reigning ruler.

Photo courtesy of Hill International-EHAF Joint Venture

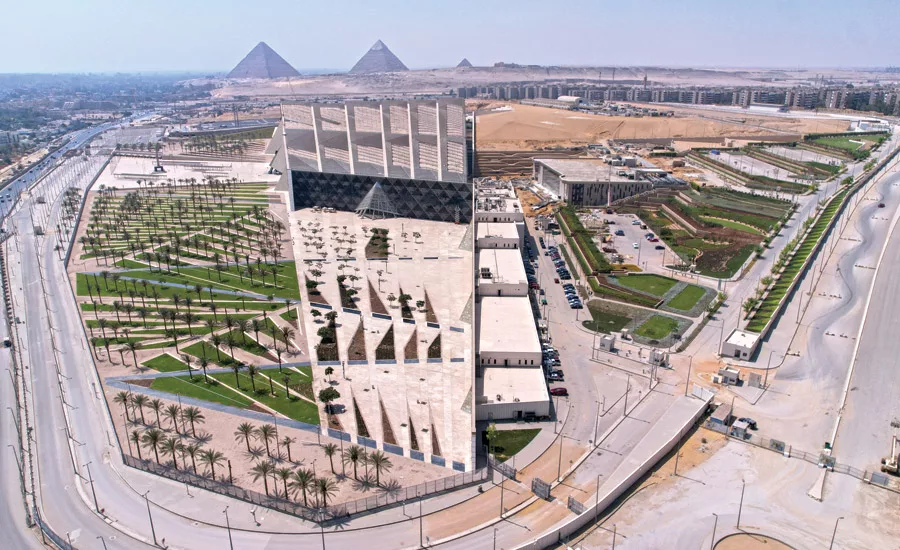

The museum’s 123-acre site includes grade shifts as it follows the original path of the Nile. The building, shaped like a chamfered triangle, is 1.2 miles north of the Great Pyramids. The building’s north and south walls line up directly with the Great Pyramid of Khufu and the Pyramid of Menkaure. Aligning it correctly required retaining walls and other work not originally planned.

Photo courtesy of Hill International-EHAF Joint Venture

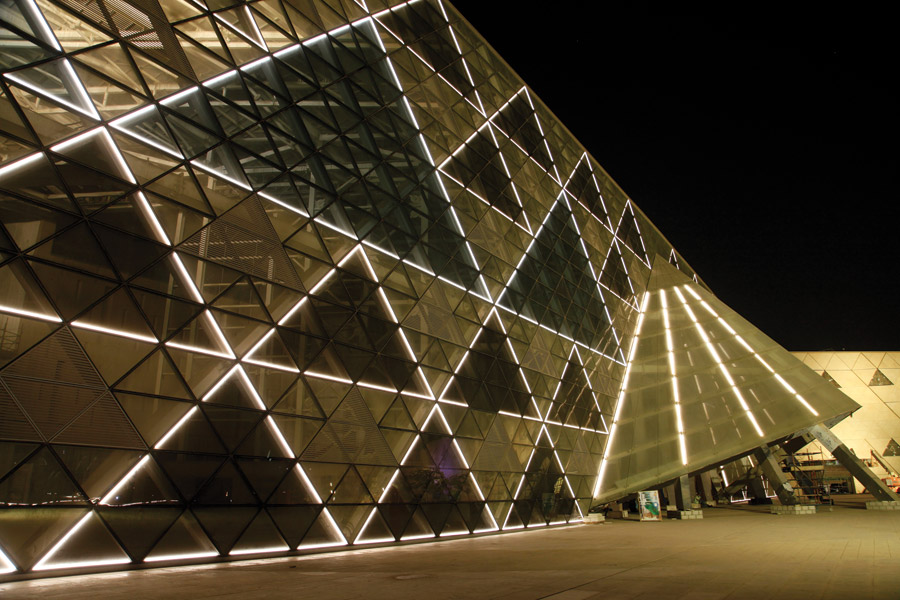

The team used an open BIM platform that allowed better solutions, shorter process durations and some cost savings during the lengthy design and construction. The facade system that faces the Pyramids of Giza is a double-glass panel that prevents heat and sound transmission.

Arup designed a mechanism that extracts air between the double panels followed by sealing. The glass panels are fixed in the concrete slab with cables of wires wrapped around each other and fixed with stiffeners distributed alongside panels.
