Petaling Jaya, Malaysia
Owner: Sime Darby Ara Damansara Development Sdn Bhd
Lead Design Firm: Arkitek FAA Sdn Bhd (FAA)
General Contractor: OrangeBeam Construction Sdn Bhd (OBC) (f.k.a. Putra Perdana Construction Sdn Bhd)
Civil and Structural Engineer: Perunding Mahir Bersatu Sdn Bhd (PMB)
MEP Engineer: PE Associates Sdn Bhd (PEA)
Project Manager: Turner International LLC
Landscape Architect: LandArt Design Sdn Bhd
Consultant: JUB Central Sdn Bhd

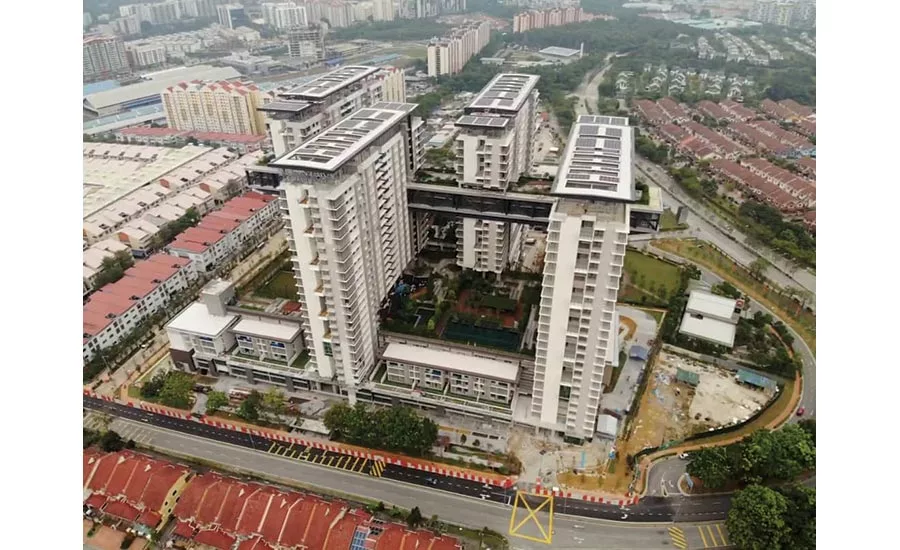

The 23-story Cantara Residences, located near Kuala Lumpur, are named after the Arabic word for bridge, because of the span that links the four apartment towers. But the skybridge, at levels 16 and 17, is no ordinary connector—it contains living units. To further complicate the project, the bridge is capped by a rooftop park, with a jogging track and gym.
The span, dubbed the Dwelling Bridge, posed the biggest challenge to the building team, especially regarding the risk of falling objects. Attention was paid to safety, protection, fit-up and other details. Still, the biggest feat was erecting the link's 1,400 tons of structural steel framing, 60 m in the air.
According to the original schedule, construction of the level-19 transfer beam and slab was to wait until after completion of levels 16, 17 and 18. A change in sequence allowed level 19 to start earlier and independent of the other floors’ completion. The resequencing resulted in the early finish, by one month, of the transfer beam and slab, the remaining level-19 structure and the tower elevations above the Dwelling Bridge.
A 4D building information model identified 219 design issues. For example, the buildings’ reinforced concrete columns—independent of the bridge steel but running up through the bridges—were modified before construction to eliminate BIM-indicated clashes with the bridge steel.
