Product Snapshot: Light Tripod and Crawler Crane
The WAL-TP-2X25WRE-1224 tripod-mounted work light features dual LED spotlights able to deliver a total of 5,500 lumens.
The Link-Belt 348 Series 2 is a 300-ton-class lattice crawler crane powered by a Cummins QSL 9, 350-hp engine that meets Tier 4 Final emissions requirements.
The BPR 70/70 D reversible-plate compactor has an operating weight of 1,279 lb and is able to deliver 15,737 lb of centrifugal force.
The RIDGID quick-acting pipe-welding clamp is designed for easy alignment of pipes in welding and pipe fabrication applications.
Tripod Work Light: Lightweight and Adjustable
The WAL-TP-2X25WRE-1224 tripod-mounted work light features dual LED spotlights able to deliver a total of 5,500 lumens. The 130W work light is able to produce a narrow 10° spot beam or a 60° flood beam. The lightweight aluminum tripod can be extended from a compact 3 ft, 6 in. to a full height of 10 ft. The lights are IP68 rated for water and dust resistance, and the vibration-resistant LEDs are protected by durable polycarbonate lenses. It comes with a detachable 16-ft power cord. Larson Electronics; www.larsonelectronics.com

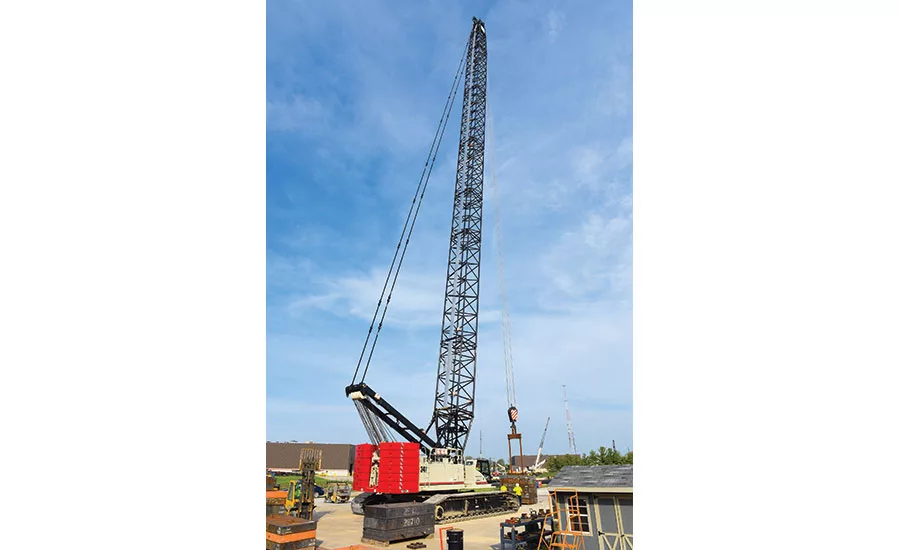

Lattice Crawler Crane: New Features Save Fuel
The Link-Belt 348 Series 2 is a 300-ton-class lattice crawler crane powered by a Cummins QSL 9, 350-hp engine that meets Tier 4 Final emissions requirements. The Series 2 features several improvements over earlier models, including ultrawide hoist drum laggings for the standard 28-millimeter rope, extending rope life and offering a maximum line pull of 53,306 lb. The winch system features an ECO mode that reduces demand on the engine when under load, keeping it under 1,000 rpm even when working at maximum line speed. The Series 2 allows for the crane’s heavy duty boom to be used in both conventional and luffing configurations, removing the need to change out tops. Link-Belt Cranes; www.linkbelt.com

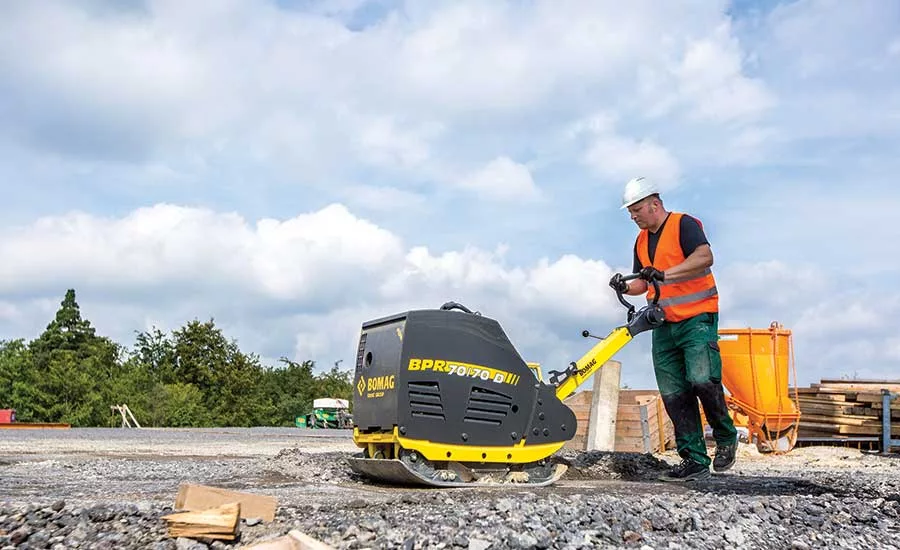

Soil Compactor: Monitor Reduces Overcompaction
The BPR 70/70 D reversible-plate compactor has an operating weight of 1,279 lb and is able to deliver 15,737 lb of centrifugal force. It has a working width of 27.6 in., which can be expanded to 33.5 in. using optional extensions. The 70/70 D is available with BOMAG’s Economizer compaction monitor, which monitors soil stiffness and lets operators know how close they are to proper compaction through an easy-to-read gauge. This optional feature can reduce overcompaction and save time. BOMAG; www.bomag.com
Pipe-Welding Clamp: Quick Release for Faster Adjustment
Looking for quick answers on construction and engineering topics?
Try Ask ENR, our new smart AI search tool.
Ask ENR →
The RIDGID quick-acting pipe-welding clamp is designed for easy alignment of pipes in welding and pipe fabrication applications. The adjustable clamp is available in two sizes: a 2-in. to 6-in. model and a 41⁄2-in. to 12-in. model. The clamp features quick-release buttons and built-in handles for fast adjustments when preparing to weld pipe. A built-in size gauge simplifies pipe measurements. The clamp is made of heavy duty steel and is able to withstand rough conditions on jobsites or in workshops. RIDGID; www.ridgid.com
Manufacturers can send information on new products to ENR.products@enr.com.
