Product Snapshot: Sheet Material Handler and Scissor Lift
At 19 ft, the Pro Series PS-1930 scissor lift is Hy-Brid’s tallest.
Sheet-Material Handler: High-Capacity

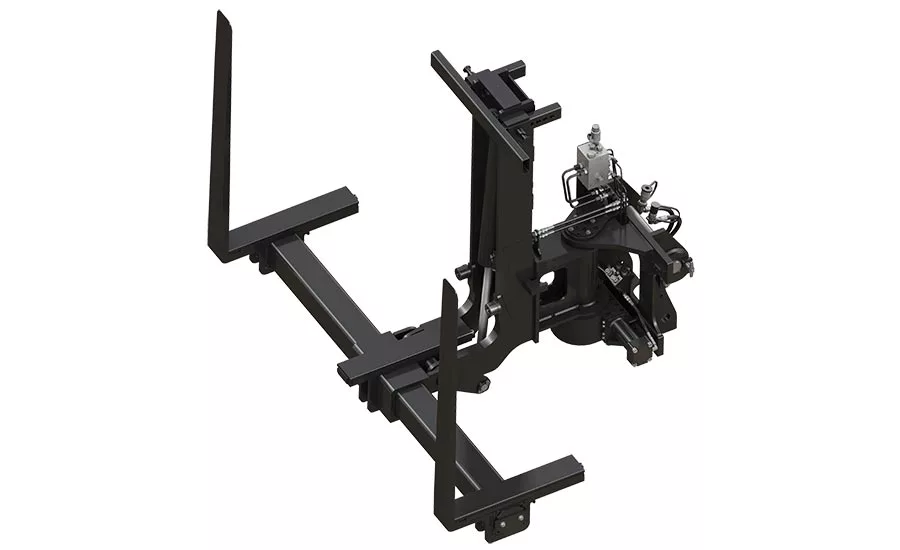

JLG has introduced a coupler-mounted sheet-material handler attachment for its 742, 943, 1043, 1055 and 1255 telehandler models. It can lift up to 3,000 lb and boasts a maximum fork spread of 72 in. and a maximum load width of 22 in. The sheet-material handler features a 100° horizontal tilt range and a 180° swing capacity.
JLG Industries; www.jlg.com
Multi Cutter: Lightweight Design

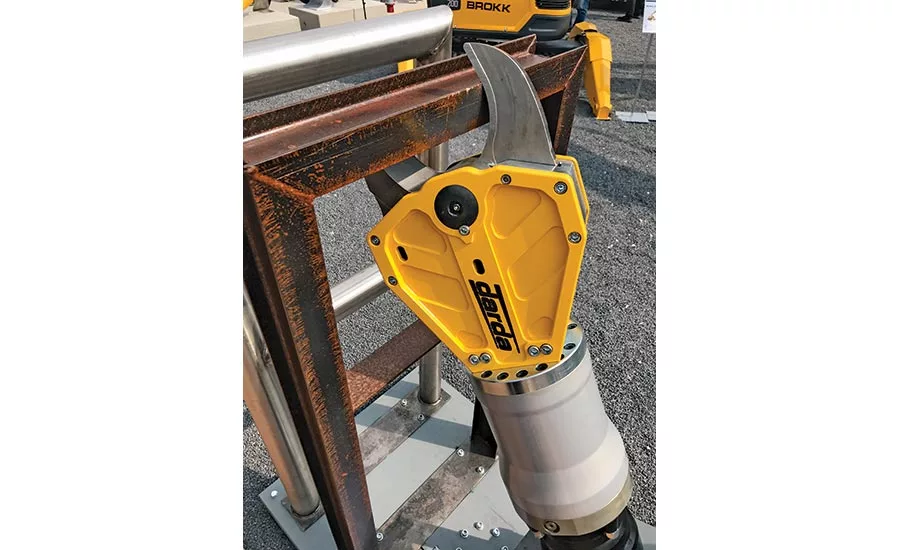

The Darda MC300 Multi Cutter attachment fits Brokk’s mid-range 200 and 300 remote-controlled demolition robots. The 50-in. by 12-in. by 21-in. cutter weighs 639 lb and delivers a cutting force of 60 tons. The jaws have a 14-in. opening and a hydraulic 360° rotary drive for easier positioning.
Brokk; www.brokk.com
Scissor lift: Meets New ANSI Standards
At 19 ft, the Pro Series PS-1930 scissor lift is Hy-Brid’s tallest. Operators enter the platform through a single step. The lift conforms to the ANSI A92.20 standards that will be introduced in March 2020. The 650-lb-capacity lift has a 25-ft working height, a 60-in. by 24-in. platform and 30-in. slide-out platform. It’s designed to fit in a standard elevator and through a standard door, without the need for fold-down rails. The PS-1390 will be compatible with the manufacturer’s new fluid containment system, offered as an optional add-on.
Looking for quick answers on construction and engineering topics?
Try Ask ENR, our new smart AI search tool.
Ask ENR →
Hy-Brid Lifts; www.hybridlifts.com
Compact Wheel Loader Canopy: Open-Cab Option

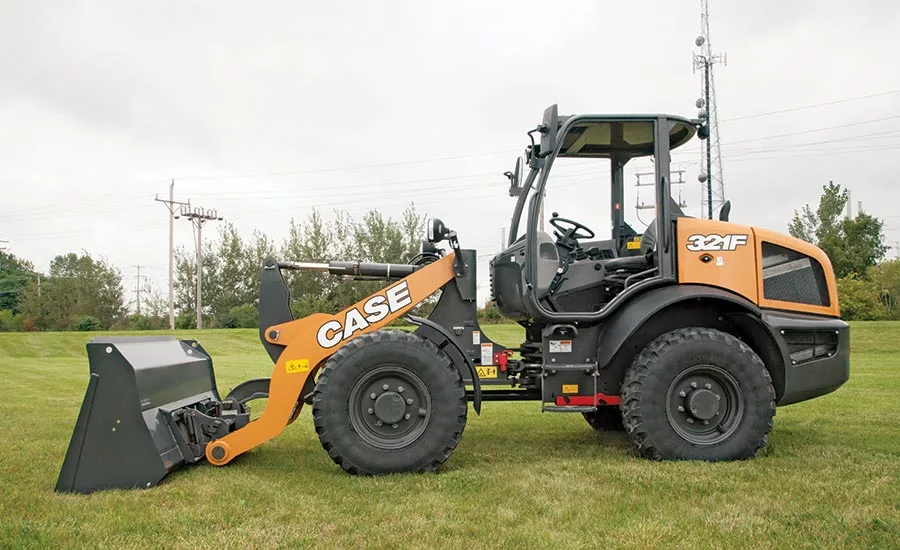

CASE has brought a four-post, open canopy option to its F Series compact wheel loaders. The ROPS- and FOPS-compliant canopy provides full visibility on all side. The open-canopy models feature the same upgraded electro-hydraulic controls as the closed-cab models in the F-Series.
CASE Construction Equipment; www.casece.com
