Revised Cause Identified for London's Wobbling Millennium Bridge After Two Decades

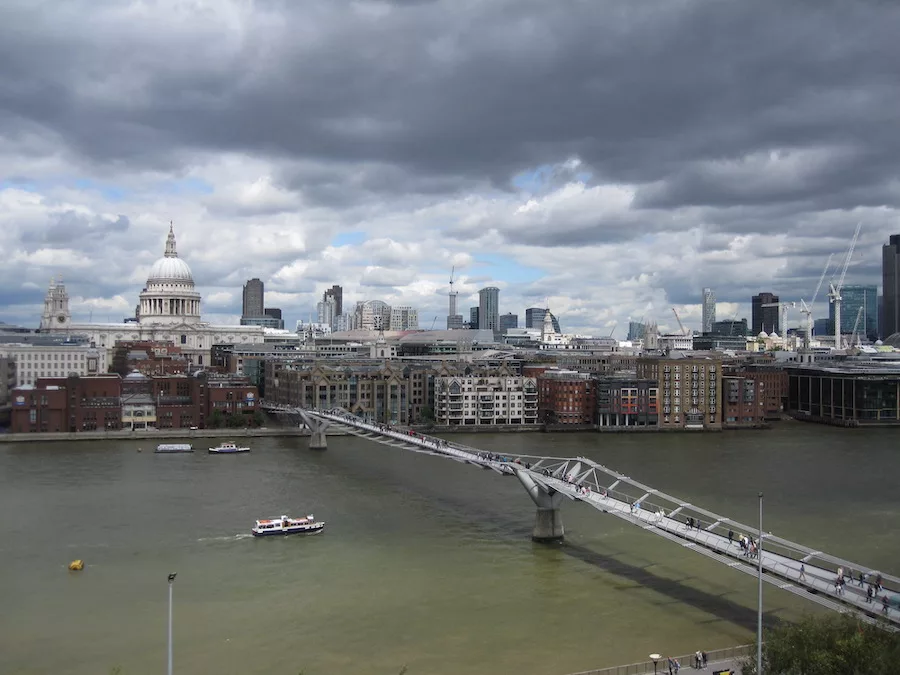

After being retrofitted with viscous dampers to address swaying, the Millennium Bridge became a major London landmark. Peter Reina for ENR
U.S. and British researchers claim to have found a better explanation for the wobble of London's River Thames Millennium pedestrian suspension bridge than the one prevailing for over 20 years. Alarming swaying of the bridge was caused not by synchronization of walkers' footsteps, as previously believed, but the negative damping effect of their efforts not to fall over.
The conclusion "should enable bridge designers and other structural engineers to develop more accurate design criteria to avoid human-induced instability of a wide range of structures," reports the team, led by engineers and mathematicians from Georgia State University and the U.K.'s University of Bristol.
The research does not provide a "magic formula" for designers, but a means of estimating the level of damping needed to avoid excessive movements, it adds.
The three-span, 333-meter-long bridge was shut down three days after its June 2000 inauguration when swaying alarmed thousands of walkers. Engineers at the project's design firm Arup Group later reported sideways movement amplitudes of up to 7 cm at 0.95 cycles/second.
The firm attributed the movement to the tendency of a crowd of pedestrians to fall into step, setting up oscillations. Laboratory and live trials by the designers revealed that sideways displacements jumped dramatically at a critical loading, rather than rising steadily with increasing numbers of walkers.
But based on examination of nearly 30 bridges, the new report concludes that the synchronization of walkers is "a consequence, rather than a cause, of the instability". Instead, bridge motions cause walkers to adjust their pace, inducing "small quasiperiodic forces which have a component at the bridge frequency".
Such uncorrelated actions "produce negative lateral damping...to initiate significant bridge vibration, over a range of bridge natural frequencies," it adds.
