Every day an armada lurks outside the entrances to the Panama Canal. Several dozen ships, mostly gigantic cargo vessels, wait in these waters for their turn to pass through the fabled, but increasingly squeezed waterway.

The 38 daily slots allotted to transit through the canal are so valuable that none of these vessels can take a chance of missing it. So they idle, often for days, until their turn comes. If there are any problems, that wait can stretch to weeks, causing enormous costs for the global shipping trade.

The Panama Canal Authority, known by its Spanish acronym ACP, is the quasi-governmental organization that oversees the waterway. ACP has launched a new $5.25-billion construction plan to alleviate such congested situations. The long-anticipated effort includes construction of two new massive sets of locks, excavation of nearly five miles of channel and dredging of several million cu m of material. If all goes as planned, the new waterway will be operational by 2014, the canal’s 100th anniversary.

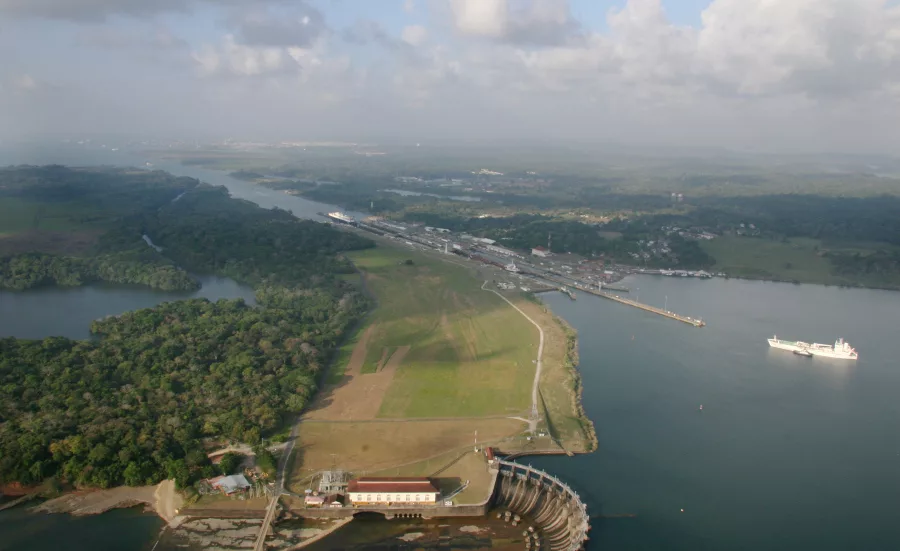

The new route will ease a bottleneck at the current locks, which raise vessels 85 ft. Improvements now under way will push the total number of daily transits to 40, but there is not room for much more. The recent completion of a $1-billion upgrade has pushed the canal’s operational capacity to about 90%, or about 14,000 transits a year. Going beyond that is unrealistic due to factors like maintenance.

“If traffic continues to grow, it is going to be very difficult to do ma5intenance without affecting the quality of service,” says Agustin Arias, the authority’s director of engineering and projects. “We don’t have the buffer capacity we had before, because traffic keeps on growing and growing.”

The authority makes its money on the quantity of goods shipped through the canal, not the overall number of transits. By accommodating bigger ships, the expansion is meant to maximize the amount of goods that can be carried on any one ship passing through the canal. More than a quarter of the goods currently travel as containerized cargo on so-called Panamax-sized vessels. The size—294.13 meters long, 32.31 m wide and a draft of 12.04 m—is specifically designed to take up every available bit of space in the locks while carrying a maximum of 5,000 20-ft equivalent units, or TEUs.
