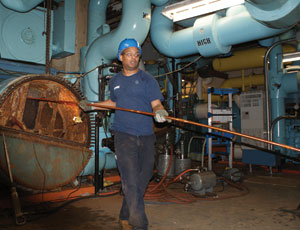

Upgrading the existing chiller cells, some parts of which having been in use since 1931, represented $16 million in savings over what it would have cost to replace the entire plant.

The Goals“Typically, a building retrofit will get a 15-20-percent [energy savings],” Baczko says. “And that’s if they’re lucky.”

In comparison, the 38 percent the Empire State Building is shooting for seems daunting. But the first goal for the retrofit, the team agreed, was to create a replicable model.

“We decided that if we only do it at the Empire State Building, we will have failed,” says Ray Quartararo, international director for Jones Lang LaSalle, which was also involved with the Bank of America building.

It is more than a number of greener components, however. Sure, there is recycling of construction debris, use of recycled materials, and greener finishes – common sense improvements available to anyone. The overall model the team is offering for replication, however, is an entire process, starting with the proper steps taken in proper order to do the work, and encompassing the interaction between the building and its tenants.

More than 60 ideas were considered, including green roofs, cogeneration, tapping into an aquifer, and wind turbines.

“All things were on the table,” says Arah Shuur, director of CCI’s building retrofit program.” The owner didn’t come in with preconditions on payback, no technologies were taken off the table, so the team played with this infinite number of packages, seeing what can be done within financial requirements.”

The second goal for the project became a stringent adherence to maximizing the cost/benefit of every possible enhancement.

“While we would have gotten the energy reduction, it would not have been commercially viable,” Quartararo says.

The TweaksThe improvements the team decided to pursue are not incredibly high-tech, expensive, or sexy. It basically came down to eight “ideas,” as the they like to call them.

The chiller plant, some of whose components date back to 1931, was due for a replacement. After careful analysis, however, the team realized that a simple retrofit of existing chiller shells, along with the addition of variable frequency drives, would do the job of upgrading them to today’s standards. The replacement would have cost $20 million while the upgrade a mere $4 million. What was more important was to see beyond the basement and into the rest of the building for thermal inefficiencies.
